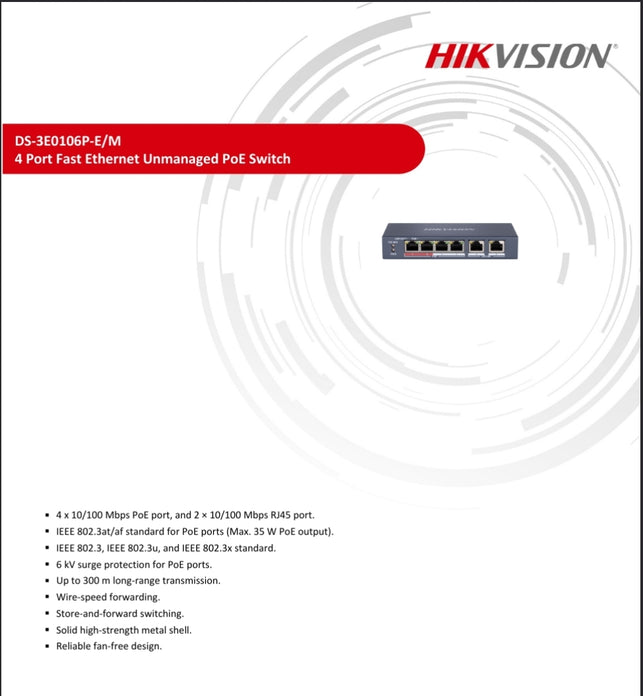

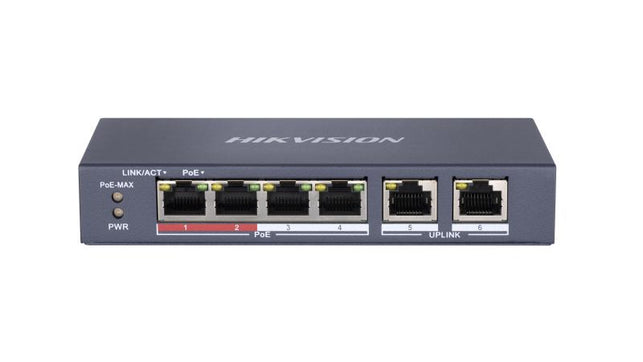

DS-3E0106P-E/M 4 Port Fast Ethernet Unmanaged PoE Switch Hikvision

Description Delivery

DS-3E0106P-E/M
4 Port Fast Ethernet Unmanaged PoE Switch
 4 x 10/100 Mbps PoE port, and 2 × 10/100 Mbps RJ45 port.
 IEEE 802.3at/af standard for PoE ports (Max. 35 W PoE output).
 IEEE 802.3, IEEE 802.3u, and IEEE 802.3x standard.
 6 kV surge protection for PoE ports.
 Up to 300 m long-range transmission.
 Wire-speed forwarding.
 Store-and-forward switching.
 Solid high-strength metal shell.
 Reliable fan-free design.

Specification
Model DS-3E0106P-E/M
General
Shell Metal material
Net Weight 0.27 kg (0.60 lb)
Gross Weight 0.52 kg (1.15 lb)
Dimensions (W × H × D) 145 mm × 68.45 mm × 25.6 mm (5.71'' × 2.69'' × 1.01'')
Operating Temperature 0 °C to 40 °C (32 °F to 104 °F)
Storage Temperature –40 °C to 85 °C (–40 °F to 185 °F)
Operating Humidity 5% to 95% (no condensation)
Relative Humidity 5% to 95% (no condensation)
Power Supply 48 V DC, 0.8 A
Max. Power Consumption 30 W
Installation Mode Desk-Mounted,Wall-Mounted
Power Consumption in Idle 3 W
Surge Protection 6 kV
Network
Parameters
Ports 4 x 10/100 Mbps PoE port,2 × 10/100 Mbps RJ45 port
MAC Address Table 2 K
Switching Capacity 1.2 Gbps
Packet Forwarding Rate 0.89 Mpps
Internal Cache 768 Kbits
PoE Power
Supply
PoE Standard IEEE 802.3af;IEEE 802.3at
PoE Power Pin 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
PoE Port PoE: Ports 1 to 4
Max. Port Power 30 W
PoE Power Budget 35 W
Dialing
Function Long Range
Ports 1 to 4: up to 300 m.
Long range performance may vary depend on camera model or cable condition.
Software
Function
VIP Port
Ports 1 to 2: data on VIP ports is preferentially forwarded when bandwidth
resources are insufficient.
Approval
EMC
FCC (47 CFR Part 15, Subpart B),CE-EMC (EN 55032: 2015+A11: 2020, EN IEC
61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN
55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32:
2015)
Safety UL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second
Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
Chemistry
CE-RoHS (201165EU);
WEEE (201219EU);
Reach (Regulation (EC) No.19072006)
